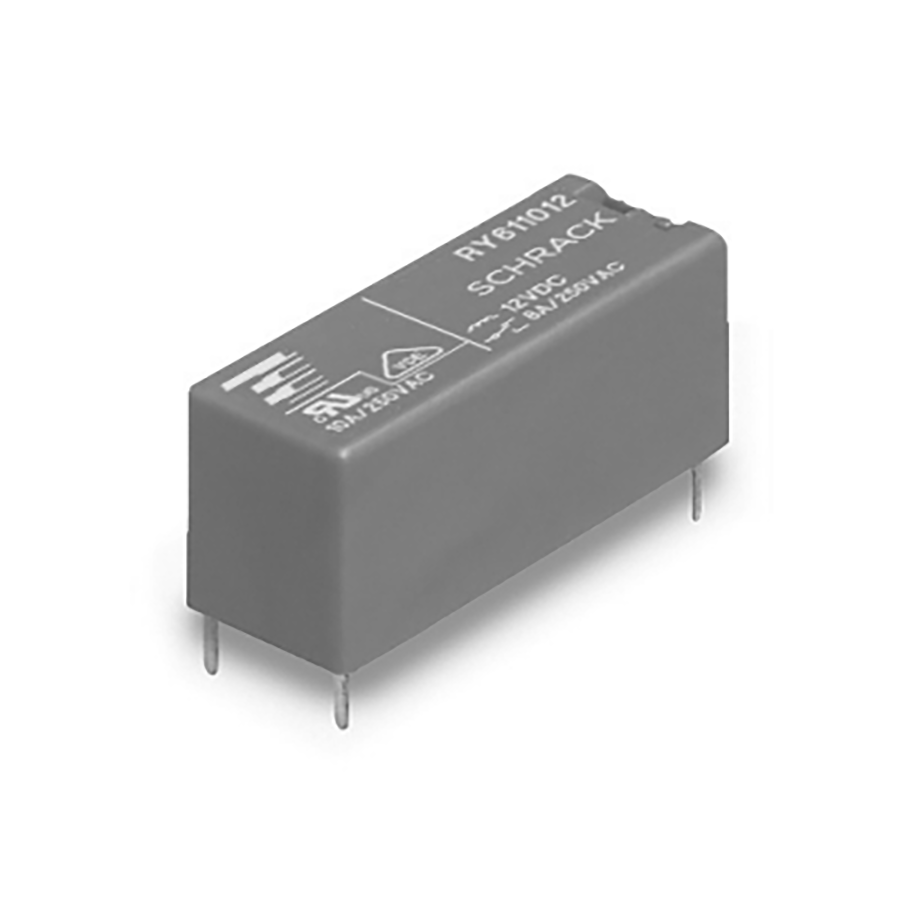

RY610024
Manufacturer:
TE Connectivity
Mfr.Part #:
RY610024
Datasheet:
Description:
Power Relays Through Hole 10.21 mA 2.35 kΩ 24 V General Purpose
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 28.5 mm |
| Width | 10.1 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 400 V |
| Number of Pins | 5 |
| Power Rating | 245 mW |
| Packaging | Bulk |
| Depth | 10.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | IP67 |
| Contact Material(Contact Finish) | Cadmium, Silver |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| ELV | Non-Compliant |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 400 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 10.21 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 2.35 kΩ |
| Relay Type | General Purpose |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Contact Current Rating | 8 A |
| switching current | 8 A |
| Termination Style | PC Pin |
| Switching Voltage | 400 VAC |
| Coil Power | 220 mW |
| Switching Capacity | 2 kW |
| Must Operate Voltage | 16.8 V |
| Must Release Voltage | 2.4 V |
